We Install & Repair Infiltrator Chamber Drain Field Products
Diamond Septic Tank Service only installs and repairs Infiltrator Chamber products for drain field applications. Quick4 Standard chambers can be installed in a 36" wide trench.
Size: 34"W x 53"L x 12"H (864 mm x 1346 mm x 305 mm)
Effective Length: 48" (1219 mm)
Multiport end cap has eight molded-in high and low inlets to allow piping to enter or exit from multiple directions.

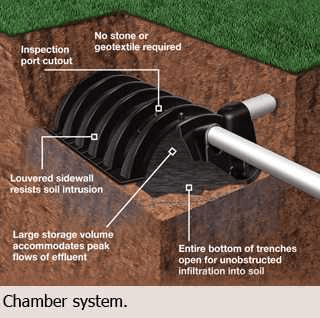

The Quick Four Infiltrator Chamber
The Chamber System:
The Infiltrator Chamber offers you these benefits:
- Advanced contouring connections swivel 10 degrees right or left
- Latching mechanism allows for quick installation
- Four feet chambers are easy to handle
- The Quick Four Standard Chamber supports wheel loads of 16,000 lbs/axle with 12" cover
- Multiport End Caps have tear-out seals which provide a tight fit for the pipe.
- Certified by the International Association of Plumbing and Mechanical Officials. (IAPMO)
- Quick4 Standard chamber can be installed in a 36" wide trench.
- Size: 34"W x 53"L x 12"H (864 mm x 1346 mm x 305 mm)
- Effective Length: 48" (1219 mm)
- Size: 34"W x 16"L x 12"H (864 mm x 406 mm x 305 mm)
- Additional Length per Trench: 26.4 (671 mm)
- Invert Height: 8" (203 mm)
Call us with any questions about Infiltrator Chamber products.
